Napoleon Grill Lineup by BTU & Cooking Area: A Data Breakdown (2026)

Napoleon Grill Lineup by BTU & Cooking Area: A Data Breakdown (2026)

Jun 20th 2026

Total BTU is one of the most misunderstood specs in outdoor cooking. To many shoppers, a grill rated at 80,000 BTUs appears more powerful than one rated at 48,000 BTUs. The reality is more nuanced. If the first grill spreads that output across 900 square inches of cooking space while the second concentrates it over 500 square inches, the lower- BTU grill may actually deliver more intense heat where it matters. A more meaningful metric is BTU density, or BTUs per square inch of primary cooking area, which measures how much heat is being applied to the cooking surface itself.

This analysis covers Napoleon's three grill types: freestanding cart grills, built-in grill heads, and TravelQ portable grills. Every figure is drawn from BBQ Authority's live product listings, an authorized Napoleon dealer, and BTU density throughout is calculated on primary cooking area only.

Key Findings

  • BTU density is the most important performance metric. A grill's BTU-per-square-inch of primary cooking area predicts cooking capabilities and searing intensity far better than the raw output by itself.
  • The 50th Anniversary Phantom Prestige 500 leads the entire 500-class at 164 BTU/sq in, driven by an enlarged infrared sear station, not a bigger cooking surface.
  • Built-in buyers need the 700 Series to match freestanding Prestige performance. The Built-In 500 Series 32" posts just 90 BTU/sq in., which is roughly the same as the entry-level Freestyle cart grills.
  • Density remains consistent as Prestige PRO grills scale up in size. Napoleon increases burner count proportionally, so the 825 maintains comparable density to the 500 despite 65% more cooking surface.
  • The TravelQ PRO285 delivers 12,000 BTU across 285 sq in. This is consistent with entry-level freestanding grills, in a format that runs off a 1 lb propane canister.

Napoleon Freestanding Grill Lineup Comparison: BTU Density

Napoleon's freestanding cart lineup includes a range of different models, from the Rogue 425 to the flagship Prestige PRO 825. It features five distinct series, each representing a step up in burner count, feature set, and searing capability. The table below is sorted by BTU density, displaying the freestanding grills with the highest BTU per square inch at the top.

Napoleon Grill BTU Density Comparison Comparing cooking power relative to primary grilling surface area
Model Burners Total BTU Primary Grill Area BTU Density (BTU / sq in)
50th Anniv. Phantom Prestige 500 6 82,000 500 sq in 164
Prestige 500 6 82,000 500 sq in 164
Prestige PRO 500 6 80,000 500 sq in 160
Prestige PRO 825 9 123,000 825 sq in 149.1
Rogue PRO-S 525 6 76,500 525 sq in 145.7
Rogue PRO-S 625 7 88,500 625 sq in 141.6
Prestige PRO 665 Elite 7 94,000 665 sq in 141.4
Prestige 665 7 94,000 665 sq in 141.4
Rogue 425 3 42,000 425 sq in 98.8


*BTU density = Total BTU ÷ Primary cooking area (main grate only; warming racks excluded)

Featured Data Point: 50th Anniversary Phantom Prestige 500

  • Total BTU: 82,000
  • Total Cooking Area: 914 sq in
  • Primary Cooking Area: 500 sq in
  • BTU Density: 164
  • Special Features: WiFi and Bluetooth connectivity, matte black finish with a blue hood, included rotisserie kit, SafetyGlow knobs

Napoleon’s limited-edition 50th Anniversary Phantom Prestige 500 deserves special attention because it combines premium-level performance with a relatively compact footprint. The 50th Anniversary Phantom Prestige 500 offers 82,000 BTU total output across 6 burners, including an enlarged infrared Sizzle Zone side sear station and an 18,000 BTU rear rotisserie infrared burner. It gives it the highest primary BTU density in the 500-class Prestige segment.

Key spec upgrades versus the standard Prestige 500 include an enlarged IR sear station, thicker cast SS WAVE grids, a 5" LCD display, Wi-Fi + Bluetooth Smart Technology, signature blue hood, and a commemorative accessory kit. The upgraded cast stainless steel WAVE grids retain more heat per grid mass, compounding the density advantage at the grate surface. This model has a limited production run, with only 1,976 models being made.

Shop the 50th Anniversary Edition Phantom Prestige 500 at BBQ Authority.

Napoleon Built-In Heads: BTU Density for Outdoor Kitchen Buyers

Napoleon's built-in lineup spans three series, including the 500 Series, the premium 700 Series, and built-in versions of the Prestige PRO. Since built-in models don't include side burners in the standard configuration, BTU density calculations are clearer. Only main burner output and primary grill grate area are used, and the infrared rear rotisserie burner is included in total BTU for 700 Series and Prestige PRO built-in models where it comes as standard.

Napoleon Built-In Grill BTU Density Comparison Comparing cooking power relative to primary grilling surface area
Model Burners Total BTU Primary Grill Area BTU Density (BTU / sq in)
Built-In 700 Series 44" 7 108,000 747 sq in 144.6
Built-In Prestige PRO 500 5 66,000 500 sq in 132
Built-In 700 Series 32" 5 66,000 531 sq in 124.3
Built-In 700 Series 38" 6 78,000 639 sq in 122.1
Built-In 500 Series 32" 4 48,000 531 sq in 90.4

Napoleon TravelQ Portables: Compact BTU Density

Napoleon's TravelQ line brings cast iron WAVE cooking grids and JETFIRE ignition to a portable format. The BTU density numbers for portable grills look different from freestanding models. For example, a compact grill running two burners over 285 square inches concentrates heat in a way that produces high raw density figures.

When taking the context into consideration, TravelQ grills have no multi-zone capability, limited temperature differentiation across the grate, and no secondary cooking surface. Therefore, the density figure here reflects proximity and single-zone concentration, not a direct parallel to the multi-burner freestanding figures above.

Napoleon Portable Grill BTU Density Comparison Comparing cooking power relative to primary grilling surface area
Model Burners Total BTU Primary Grill Area BTU Density (BTU / sq in)
TravelQ PRO285X 2 12,000 285 sq in 42.1
TravelQ PRO285 2 12,000 285 sq in 42.1
TravelQ 285 2 12,000 285 sq in 42.1
TravelQ 240 1 9,000 240 sq in 37.5

BTU Density Across the Full Napoleon Gas Grill Range

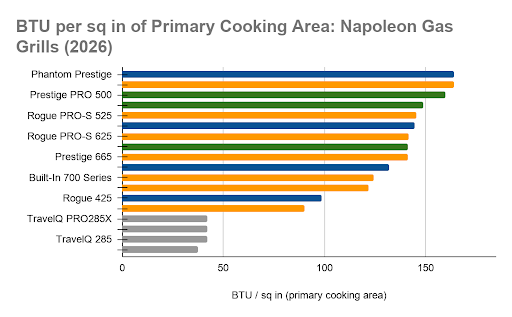

The following chart compares BTU density across the entire range of Napoleon gas grills, including portable, freestanding carts, and built-in grills.

What Does the Data Show?

BTU Density Scales with Series

Bigger isn't always better in outdoor grilling, but more burners usually are. Raw BTU output can be misleading on its own. What actually determines searing capability is how much BTU is concentrated over the cooking surface. For example, the Prestige PRO 825 has 65% more cooking area than the PRO 500, but nearly identical BTU density. This is because Napoleon adds burners proportionally as the grills get bigger. This illustrates that buyers should size up for more cooking space, not more heat.

The Standard Prestige 500 Is Close to the PRO Tier

The standard Prestige 500 is now much closer to the PRO tier than most buyers realize. The current Evolved 2025 Prestige 500 RSIB runs 82,000 BTU across 914 sq in total, which is the same output as the Phantom Prestige 500. On a density basis, the gap between the standard Prestige 500 and the Prestige PRO 500 is relatively narrow. The PRO tier still differentiates on build quality and included accessories, but the performance distance is smaller than the price gap suggests.

Built-In Buyers Need to Start at the 700 Series

In an outdoor kitchen, the 500 Series built-in is the wrong model for serious cooking. The Built-In 500 Series 32" delivers 90 BTU/sq in, which is nearly the same density as an entry-level cart grill. Buyers building an outdoor kitchen who want real searing performance need to start at the 700 Series 32" (124 BTU/sq in) at minimum. The 700 Series 44" (144.6 BTU/sq in) is the only built-in that matches freestanding Prestige PRO performance density.

Final Thoughts

The data makes a clear case for prioritizing BTU density over raw output. Across Napoleon's full gas grill range, from the TravelQ to the Prestige PRO, the data consistently shows that searing performance comes down to how much output is concentrated over the primary cooking surface, not how impressive the total BTU number looks on a spec sheet. If you're shopping for a Napoleon grill, start with the data, and then make your decision accordingly.
